 3D Print Quality Troubleshooting

This guide is intended to help you troubleshoot common 3D print quality issues. It is designed specifically for the Nautilus 3D Printer, but may apply to many other FFF/FDM 3D printers as well. This guide is updated regularly with new information.

Table of Contents

Click on the images to view full descriptions and solutions






Request a new issue to be covered or submit feedback here.



 Curling


Curling refers to the issue that typically occurs on overhangs where extrusions curl upward resulting in a rough/distorted surface. This is more likely to happen with plastics that cannot be printed with the part cooling fan. The plastic is extruded at high-temperature and if not cooled quickly, can result in curling artifacts especially on overhangs. The more severe the overhang the more likely you will be to see curling

Solutions

  • You may be able to reduce curling by reducing the print temperature, and/or increase part cooling. However, the plastics that are most likely to exhibit curling (ABS, ASA, etc) may start to have layer adhesion problems if you decrease printing temperature or increase part cooling, especially for large parts.

  • Design your parts to have less severe overhang geometry.

  • Orient your part on the build plate in Cura so that there are as few severe overhangs as possible.




Discoloration (black/brown flecks)

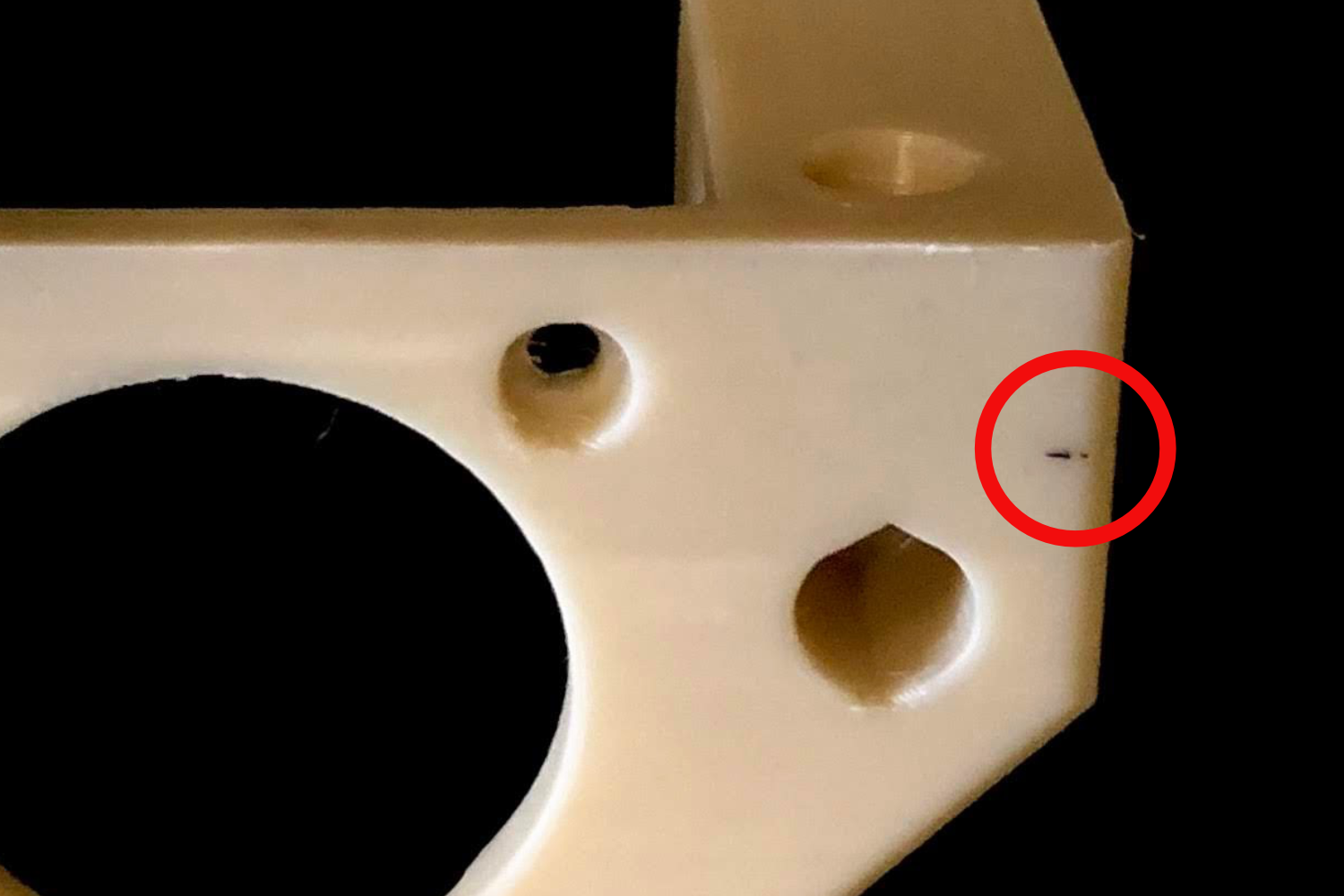

This is typically noticed on lighter colored plastics, specifically white and clear. You might notice little black or brown spots/flecks on your part. There are three potential causes of this issue. One, melted plastic has built up on the exterior of the nozzle and is falling off onto the print. Two, there is residual material from a different plastic you were printing before. Three, your print temperature may be too hot, causing the plastic to burn/discolor.

Solutions

  • Check to see if there is any plastic build up on the exterior of your nozzle. If there is, heat up the hotend and clean if off with a wire brush.

  • If you have just switched from a dark color to a light color, it is a good idea to manually extrude plastic after loading material until you are sure the new color is coming through clean.

  • Reduce your printing temperature by 5-10 °C.




Drooping Overhangs

Drooping Overhang (1000).png

Overhangs are sections of the part that are slanted with no supporting structure below. It is advisable to avoid overhangs greater than 45° measured from the Z-axis down, however, you will find some materials will be able to handle steep angles like PLA and co-polyesters, while others like ABS, ASA, and Nylon may have issues at 45°, especially with thicker layer heights.

Solutions

  • Use support structures. The interface between the part and support will have a rougher surface finish but make overhangs much more reliable.

  • Increase part cooling via the part cooling fan, this may cause warping and layer splitting with large parts or parts that have a high shrinkage ratio when they cool like ABS, ASA, and Nylon.

  • Print a lower layer height.

  • Reduce the printing temperature by 5-10 °C, this may increase the chance of layer splitting.

  • Reduce your extrusion multiplier (called flow in the material settings in Cura). This is the least like to have an effect, but in some cause it may help.




 First Layer Too Close

First Layer Too Close.png

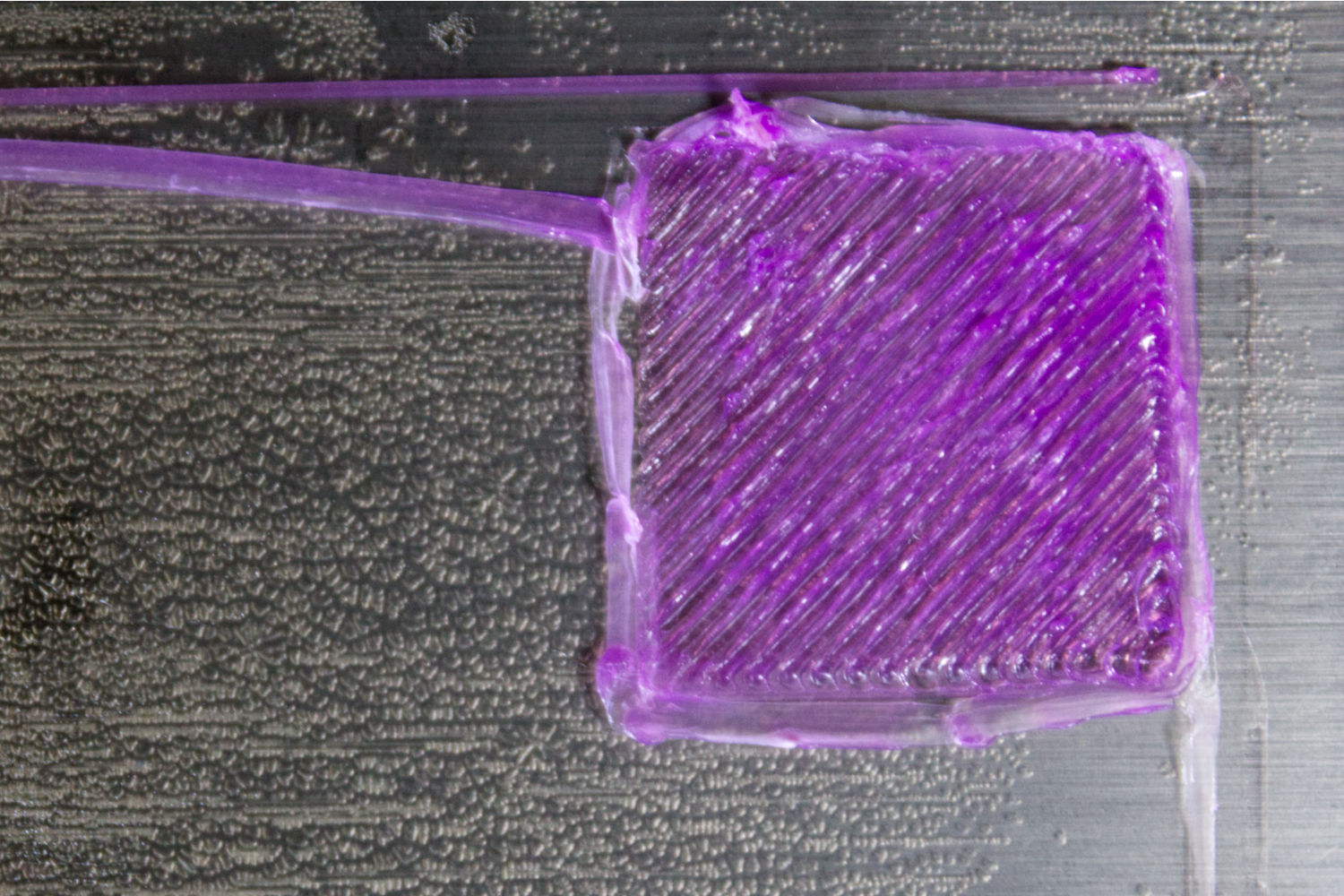

Printing the first layer with your nozzle too close to the bed can cause a variety of printing issues. It can prevent extrusion during the first layer or cause elephant’s foot, making your first couple of layers wider than the rest of the print. This issue can be material specific. It can also be caused by an improper Z-Offset or printing after a failed bed leveling.

Solutions

  • Adjust your babystepping value (Z-offset) which can be found in the Print tab on your Nautilus. If you need to babystep your prints infrequently or only for certain materials, this is an effective solution.

  • Adjust your Z-Offset if you find yourself having to make large babystepping adjustments or the issue is consistent.

  • If the bed leveling probe fails, it can cause issues with the Z height. If your Nautilus doesn’t complete its 16 point leveling procedure or you notice the red light on the BLTouch probe flashing, then the probe is in alarm mode. This can be fixed by restarting the print, your BLTouch is reset before probing at the beginning of every print.




First Layer Too Far

First Layer Too Far.png

Printing the first layer with your nozzle too far from the bed can cause the part to detach from the bed or lead to gaps in the first layer extrusions. This issue can be material specific. It can also be caused by an improper Z-Offset or printing after a failed bed leveling.

Solutions

  • Adjust your babystepping value (Z-offset) which can be found in the Print tab on your Nautilus. If you need to babystep your prints infrequently or only for certain materials, this is an effective solution.

  • Adjust your Z-Offset if you find yourself having to make large baby stepping adjustments or the issue is consistent.

  • If the bed leveling probe fails, it can cause issues with the Z height. If your Nautilus doesn’t complete its 16 point leveling procedure or you notice the red light on the BLTouch probe flashing, then the probe is in alarm mode. This can be fixed by restarting the print, your BLTouch is reset before probing at the beginning of every print.




 Layer Splitting

Layer Splitting.png

Layer splitting occurs when the layers of a part do not bond strongly and as the part cools the shrinkage forces are enough to break the layer bond. This is much more common with materials that have greater shrinkage factors as they cool, like ASA, ABS, Nylon, etc. It also tends to show up more on larger parts. To mitigate this, the goal is to increase the bonding of the printed layer with the layer below it.

Solutions

  • Decrease or disable the part cooling fan in Cura

  • Increase the printing temperature by 5-10 °C. This may improve the layer bonding.

  • Increase the build plate temperature by 5-10 °C. This will increase the ambient temperature inside the printer, which may slow the cooling process of the printed part, resulting in better layer bonding.

  • Use a Tool Cartridge with a larger nozzle diameter. Large extrusion width almost always results in a stronger part.

  • If you have manually changed you layer height, make sure that you never use a layer height more than 70% of your nozzle diameter.




Pillowing

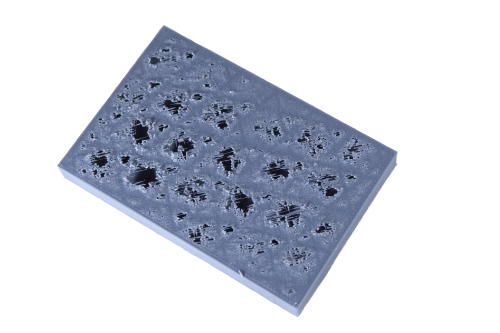

Typically pillowing refers specifically to the situation where the plastic “bubbles” slightly on the top surface,  but we will also cover the closely related issue where the top layer does not fill in properly. These issues are usually caused by printing too few top solid layers over a low density infill. Printing temperature and part cooling can play a small role.


Solutions

  • Increase the number/thickness of the top solid layers. This setting is found in the Shell settings section in Cura.

  • Increase your infill percentage. Typically pillowing issues can begin to show up at infill percentages of 10% and lower.

  • You may also see improved results by increasing part cooling or reducing the build plate temperature, but this can introduce warping and layer splitting issues for large parts and materials like ABS, ASA, and Nylon.




Stringing

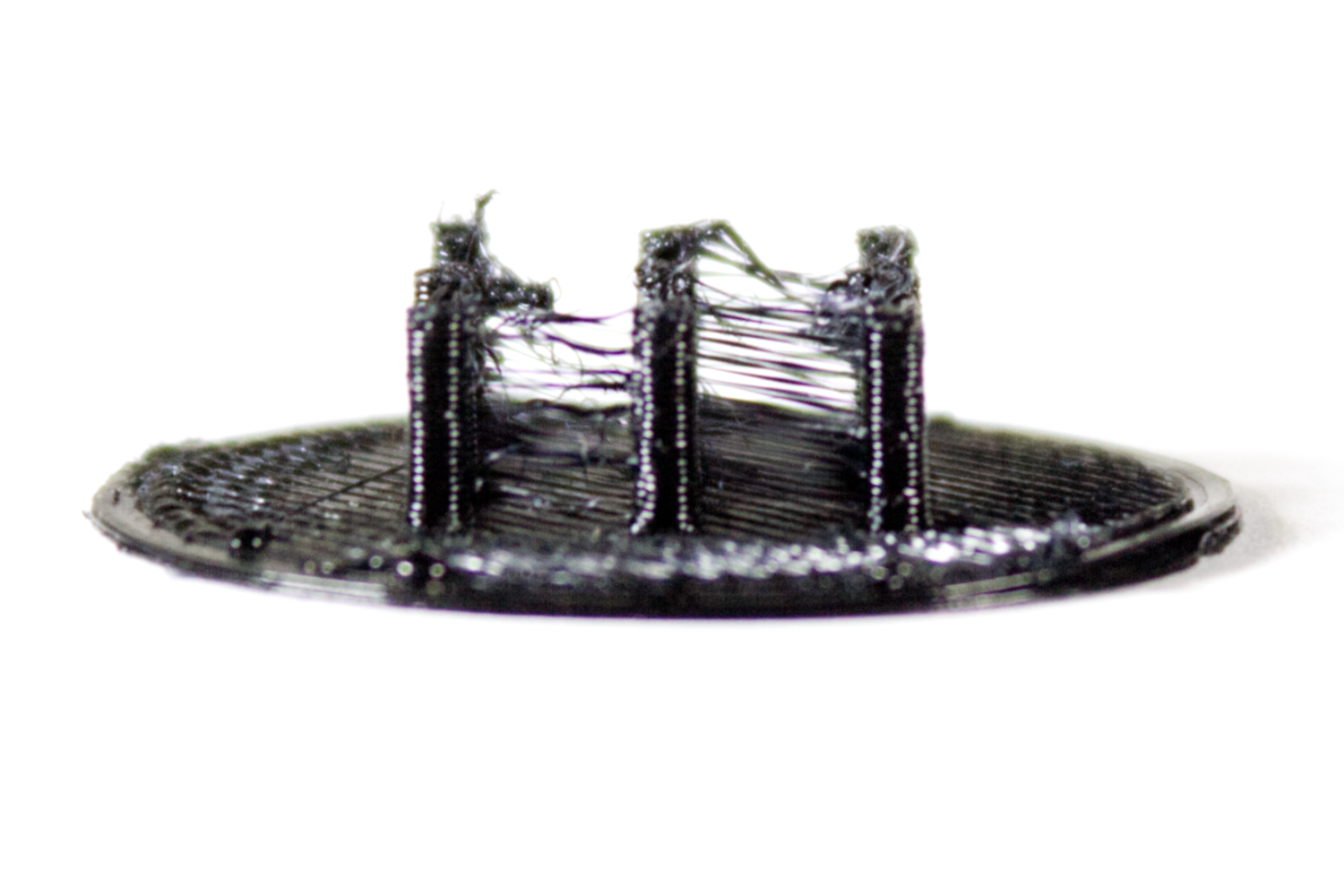

Stringing occurs when material continues to come out of the nozzle while the print head moves to a new location on the print. It is easy to diagnose, you will see thin strings or blobs of material coming off the sides of your parts or between modeled gaps in the part. Certain materials tend to cause more stringing than others, including Co-Polyesters, and Flexibles. Stringing can be caused by wet filament, not enough retraction, printing too hot, or frequent movements over gaps in the part.

Solutions

  • Dry your filament using a dehydrator. You may need to dry for up to 24 hours.

  • Increase retraction distance, most materials will not require more than 1-2 mm of retraction for a direct drive extruder like on the Nautilus.

  • Increase your pressure advance. Values between 0.01 and 0.1 should work for most rigid materials, while higher values will be necessary for flexibles (still less than 1).

  • Decrease printing temperature by 5-10°C

  • You can try to enable combing in Cura. Combing keeps the nozzle over infill during travel moves which may increase print time slightly but will hide strings inside the part. Note that with combing enabled, the nozzle does not lift away from the part during travel moves. This means that the print head is more likely to catch on the printed part during the travel move which increases the chance of layer shifts or your part being knocked over.




Supports Knocked Over


This issue refers to the situation where a support structure breaks loose during printing, likely causing issues with that portion of the part that was supposed to be supported. There are a few reasons your support structure could be knocked over. If you have a support structure that is tall and thin, it may not have enough surface area in contact with the build plate to reliably keep it attached. You might also find supports breaking free if they are built on a steep angled part of the printed object, or if your printer’s tool head does not lift during travel moves (referred to as Z-hop).

Solutions

  • If you have tall, thin supports, try adding a brim to your supports, which can be found in the support section of the Cura setting panel. You can also decrease the support overhang angle, which will cause more support structures to be generated, resulting in structures that are less likely to break free.

  • If supports are being generated on the part that build off of the part and not the build plate, this is a bit trickier. Typically support structures are designed to have a small gap between the support and the model. Since this gap is usually calculated vertically, steep angles surfaces can result in a larger gap. You can set the support z distance to 0, but this may make the support structure more difficult to remove. Support z distance is usually set to the layer height you are printing at.

  • The Nautilus has tool head lift during travel moves (Z-hop) enabled by default, however, if you have combing enabled in Cura or have been tinkering with your slicing settings, you may want to check that is is still enable if you are having trouble with support structure breaking free. The z-hop setting can be found in the travel section of the Cura settings panel.




Warping

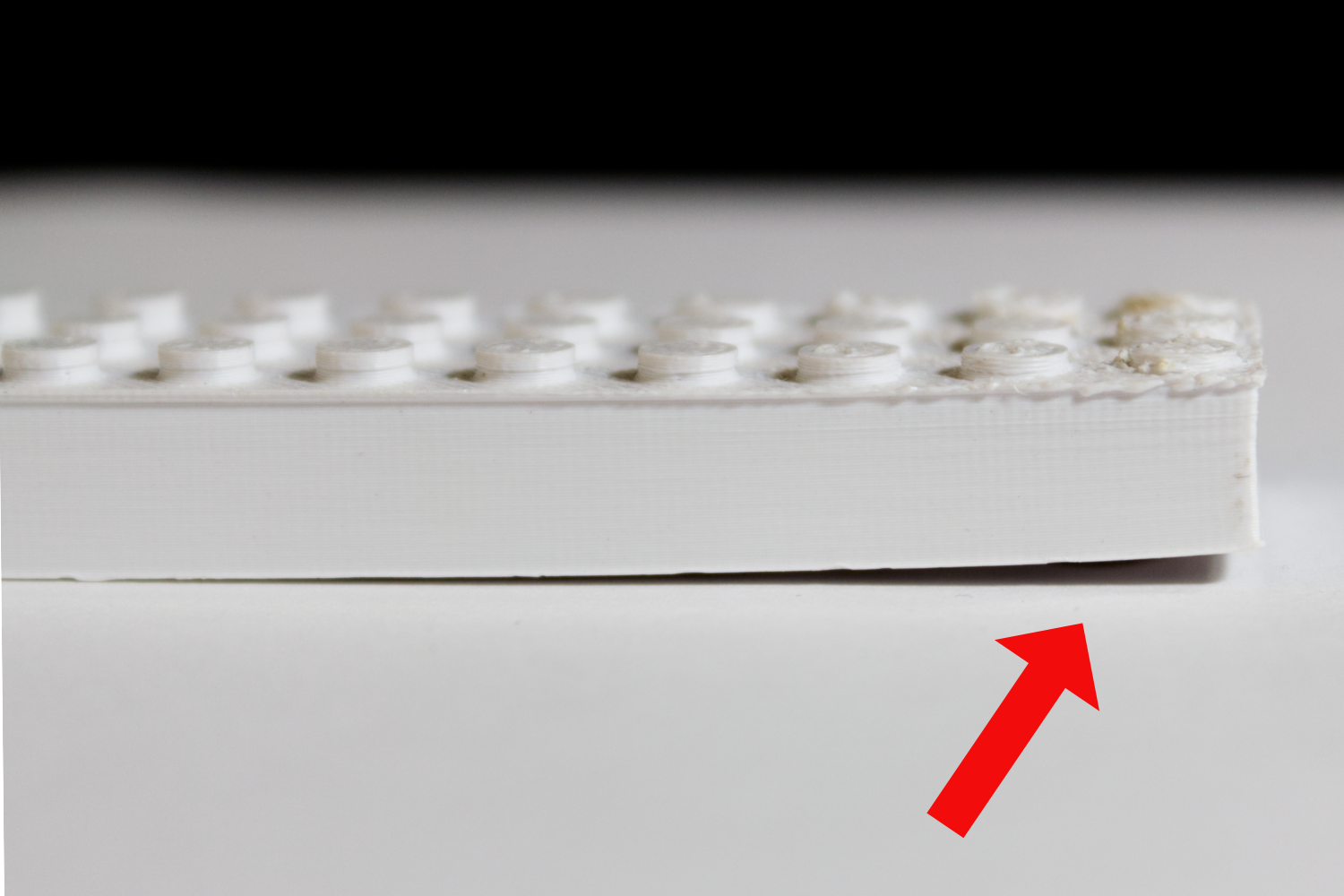

Warping refers to the situation where the corners of your part begin to lift away from the print surface even though the first layers of your part successfully adhered to the print surface. This is particularly common with large parts and/or materials that have a high shrinkage rate as they cool like ABS, ASA, Nylon, etc

Solutions

  • Add a brim. A brim is a number of extra perimeters that are added around your part for the first layer. This will help hold your part down to the print surface.

  • Use an enclosed printer, like the Nautilus.

  • Decrease or disable the part cooling fan in Cura

  • Increase the build plate temperature by 5-10 °C. This will increase the ambient temperature inside the printer, which may slow the cooling process of the printed part resulting in better layer bonding.




Wet Filament (Poor Surfaces, Popping Noise, Jamming)

WetvDry (1000).png

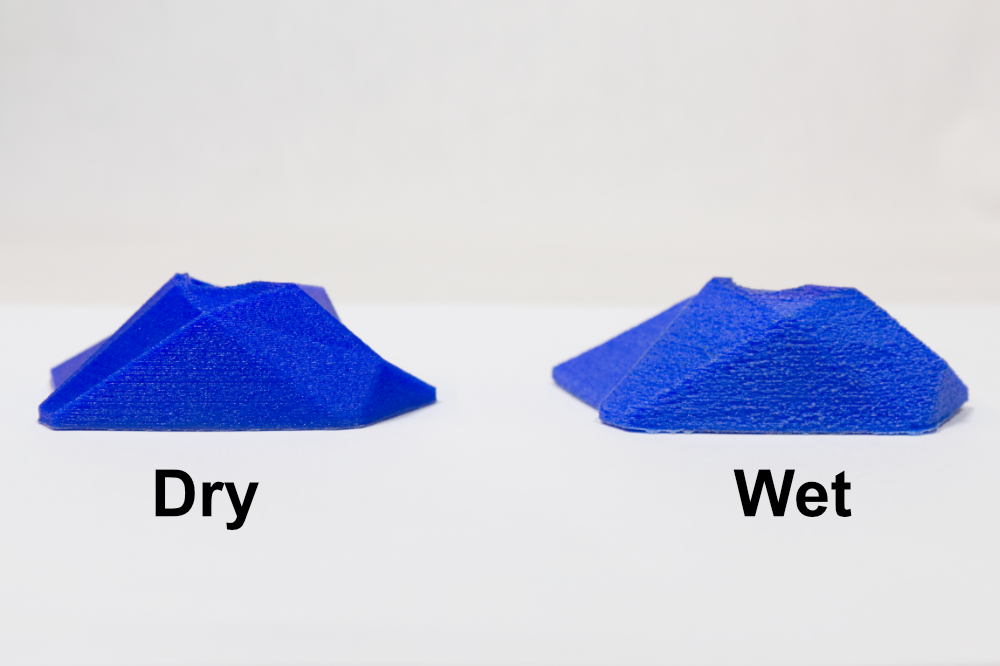

If you hear popping noises and or see steam coming from your nozzle, or you see bubbles/rough surfaces on your printed parts, your filament is likely wet. These issues are caused by the moisture in your filament expanding and turning to gas when heated up in the hotend. This can cause poor layer adhesion, weak parts, rough surface finish, stringing, and in some cases cause extrusion to stop completely.

Solutions

  • Dry your filament using a dehydrator. You may need to dry for up to 24 hours. See the Nautilus user manual for material specific information about drying your filament in an oven.





Feedback, Ideas, or Suggestions?

If there is an issue you have been having that you would like to see us cover or have any other feedback, please fill out the form below!
