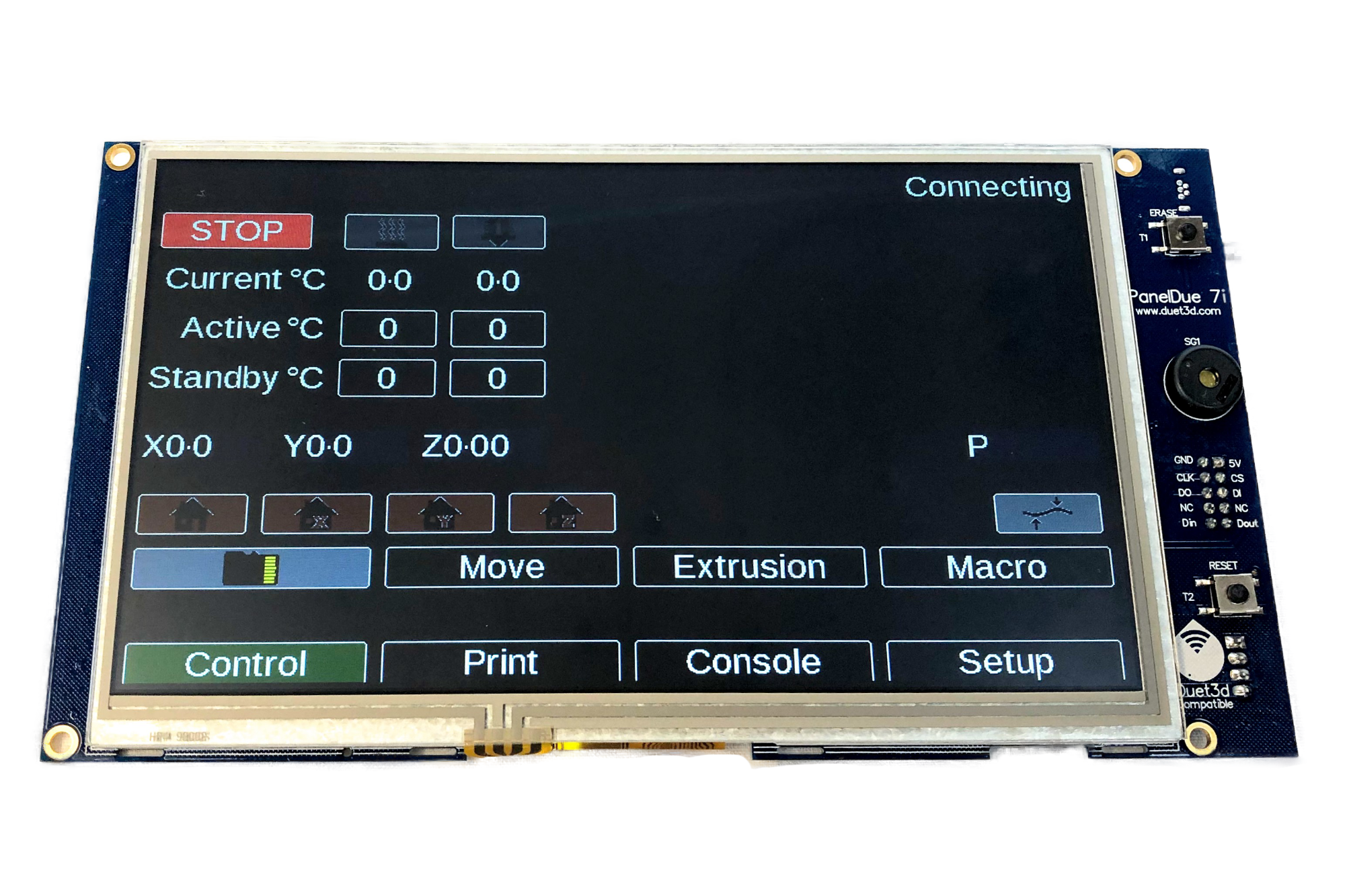

Duet PanelDue 7i Touch Display

Duet PanelDue 7i Touch Display

100.00

UK customers should buy from duet3d.com or one of their UK resellers

Compatible with the Nautilus

sold out
Add To Cart

The PanelDue is a colour touch screen controller for the Duet and other 3dprinting electronics that support it.

  • The control board and firmware support 3 screen sizes: 4.3", 5" and 7", at two resolutions: 480×272 (4.3-inch displays) or 800×480 pixels (5- and 7-inch displays). Note that the lower resolution of the 4.3” display means that it cannot display as much information on the screen – for example a maximum of 4 extruders, as shown in the picture.

  • 5V power from host 3D printer controller.

  • 2-wire async serial interface with 3.3V signal level (5V tolerant input).

  • Connections to the external SD card socket that is included on most compatible displays is available via a 10-way ribbon cable connector on version 2.0 PanelDue boards.

  • 4-wire cable to connect the PanelDue to your controller board for the serial and power connections.

  • The control board without a screen is also available however a 4.3”, 5” or 7” SSD1963 LCD panel is required and the instructions on David Crocker’s PanelDue blog must be followed.

In the Box

  • PanelDue 7i

  • 4-wire connector cable 1m

  • 10-way ribbon cable 300mm
